HEAVY DUTY SINGLE & DOUBLE SIDED LAMINATORS
Clear Solutions series of X-Laminators are designed for heavy duty work within the graphics, sign & printing industry.
The X-Laminator series is easy to operate and makes any laminating job a breeze adding value to your production and increasing the quality of your products and services. Our range of laminators are available in various sizes and application requirements, from hot,cold, single and double sided laminators. Our world class laminaters will fit in with any modern day state of the art print shop, delivering smooth professional laminating prints everytime. The X-Laminator range is capable of light to heavy duty production at high speed.

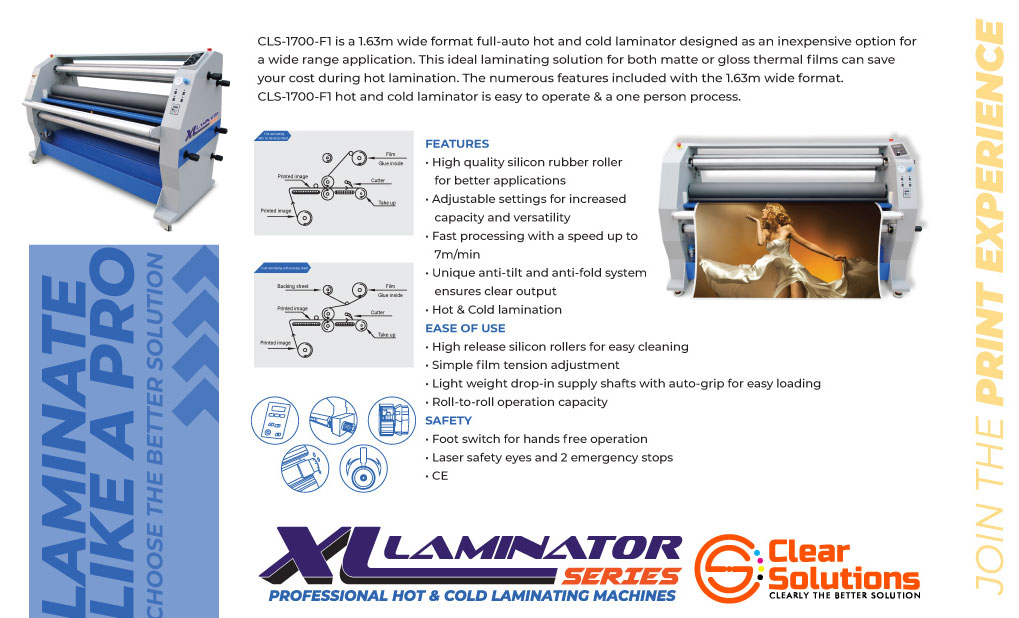

CLS-1700-F1 SINGLE SIDED HOT & COLD LAMINATOR
CLS-1700-F1 is a 1.63m wide format full-auto hot and cold laminator designed as an inexpensive option for a wide range application. This ideal laminating solution for both matte or gloss thermal films can save your cost during hot lamination. The numerous features included with the 1.63m wide format CLS-1700-F1 hot and cold laminator is easy to operate & a one person process.
FEATURES
• High quality silicon rubber roller for better applications
• Adjustable settings for increased capacity and versatility
• Fast processing with a speed up to 7m/min
• Unique anti-tilt and anti-fold system ensures clear output
• Hot & Cold lamination
EASE OF USE
• High release silicon rollers for easy cleaning
• Simple film tension adjustment
• Light weight drop-in supply shafts with auto-grip for easy loading
• Roll-to-roll operation capacity
SAFETY
• Foot switch for hands free operation
• Laser safety eyes and 2 emergency stops
• CE
MACHINE SPECIFICATIONS
| Model: | 1630mm | ||
|---|---|---|---|
| Maximum laminating width: |
23mm | ||
| Type: | Hot & Gold | ||
| Max Temp. : | 120°C/248°F | ||
| Max Speed: | Up to 56m/min | ||
| Pressure Height Adjust: | Lifting link | ||
| Heated Method: | Infrared | ||
| Roller: | Silicon | ||
| Roller Diameter: | 130mm | ||
| Preheating time: | 10-15min | ||
| Power Input | 2500W | ||
| KW/H: | 0.8-1 | ||
| Volt: | 110V / 220V | ||
| Dimension: | 660mm x 2250mm x 1450mm | ||
| Power Supply: | AC 380V/220V±10% , 50HZ/60HZ | ||
| Emergency stop Buttons: | 2 | ||
| Laser Eye: | YES | ||
| Additional Safety: | Foot Switch for Hands Free Operation | ||
Please note that all specifications listed are subject to change at the discretion of the manufacturer without prior notification. For the latest specifications & updates please contact us on sales@clearsol.co.za.
CLS-1700-F2 DUAL HOT & COLD LAMINATOR
CLS-1700-F2(Optional Cutter) is the latest dual or top heated hot and cold laminator for signage and graphic industries, with optional cutter for laminating and cutting makes the finishes more effective. Up to 1630mm lamination width, mounting up to 28mm, with a temperature up to 120°C(248°F) for both rollers. The CLS-1700-F2 is ideal for demanding finishing requirements. Use with cold or thermal films for single-side or double-side lamination for a max speed of 18m/min. This wide format and heavy duty laminator is designed for widest choice of finishing possibilities.
FEATURES
• Hybrid laminating and cutting(Optional)
• High quality dual-heated silicon rubber roller ensures heavy-duty work
• Double-sided & single sided for Hot & cold lamination
• Unique anti-tilt and anti-fold system ensures clear output
• Fully adjustable nip-gap and pressure for precise application
EASE OF USE
• Fully adjustable nip-gap and pressure
• Simple film tension adjustment
• Light weight drop-in supply shafts with auto-grip for easy loading
• Roll-to-roll operation capacity
• Foot pedal switch for pieces accurate application
SAFETY
• Foot switch for hands free operation
• Laser safety eyes and 2 emergency stops
• CE, PSE
MACHINE SPECIFICATIONS
| Model: | 1630mm | ||
|---|---|---|---|
| Maximum laminating width: |
28mm | ||
| Type: | Hot & Gold | ||
| Max Temp. : | 120°C/248°F | ||
| Max Speed: | Up to 18m/min | ||
| Pressure Height Adjust: | Air Pressure | ||
| Heated Method: | Infrared | ||
| Roller: | Silicon | ||
| Roller Diameter: | 130mm | ||
| Preheating time: | 10-15min | ||
| Power Input | 2600W / 4800W | ||
| KW/H: | 0.8-1 | ||
| Volt: | 110V / 220V | ||
| Dimension: | 660mm x 2150mm x 1450mm | ||
| Power Supply: | AC 380V/220V±10% , 50HZ/60HZ | ||
| Emergency stop Buttons: | 1 | ||
| Laser Eye: | YES | ||
| Additional Safety: | Foot Switch for Hands Free Operation | ||
Please note that all specifications listed are subject to change at the discretion of the manufacturer without prior notification. For the latest specifications & updates please contact us on sales@clearsol.co.za.

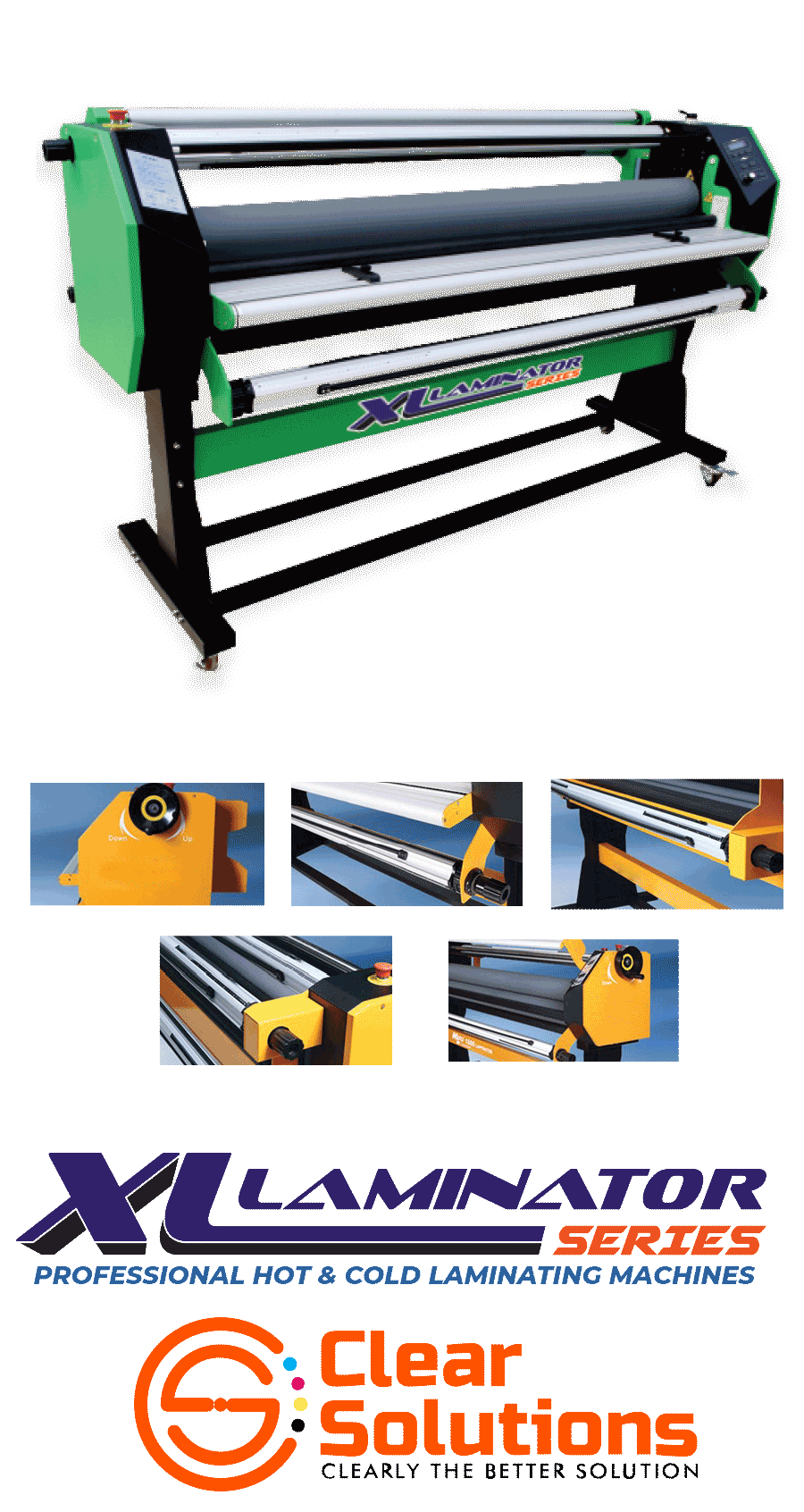

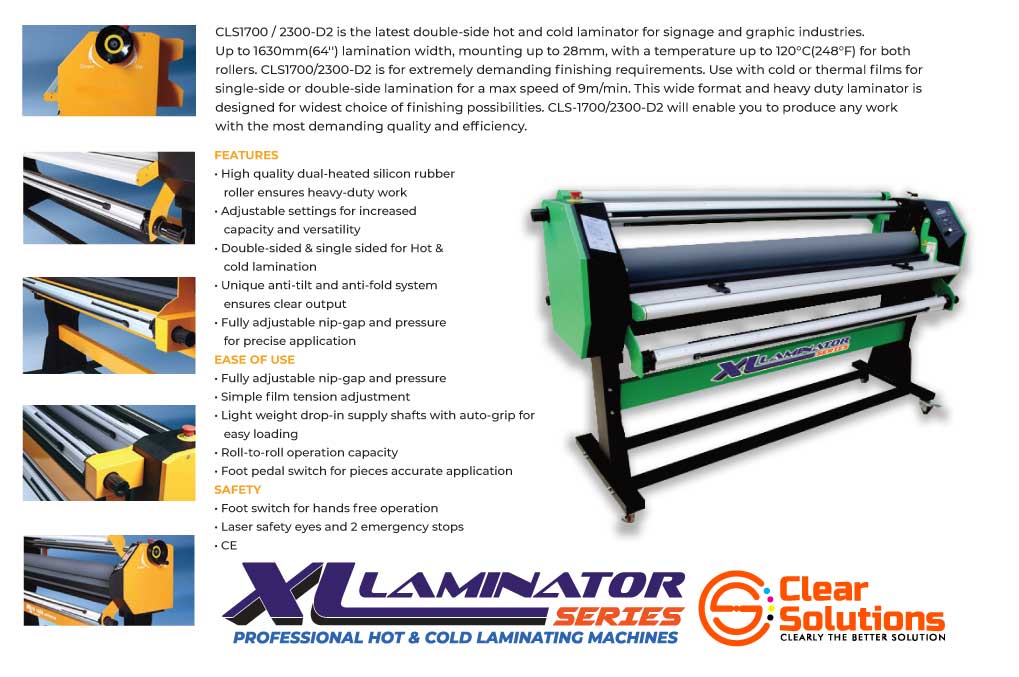

CLS-1700/2300-D2 DUAL HOT & COLD LAMINATOR
CLS1700 / 2300-D2 is the latest double-side hot and cold laminator for signage and graphic industries. Up to 1630mm(64”) lamination width, mounting up to 28mm, with a temperature up to 120°C(248°F) for both rollers. CLS1700/2300-D2 is for extremely demanding finishing requirements. Use with cold or thermal films for single-side or double-side lamination for a max speed of 9m/min. This wide format and heavy duty laminator is designed for widest choice of finishing possibilities. CLS-1700/2300-D2 will enable you to produce any work with the most demanding quality and efficiency.
FEATURES
• High quality dual-heated silicon rubber roller ensures heavy-duty work
• Adjustable settings for increased capacity and versatility
• Double-sided & single sided for Hot & cold lamination
• Unique anti-tilt and anti-fold system ensures clear output
• Fully adjustable nip-gap and pressure for precise application
EASE OF USE
• Fully adjustable nip-gap and pressure
• Simple film tension adjustment
• Light weight drop-in supply shafts with auto-grip for easy loading
• Roll-to-roll operation capacity
• Foot pedal switch for pieces accurate application
SAFETY
• Foot switch for hands free operation
• Laser safety eyes and 2 emergency stops
• CE,
MACHINE SPECIFICATIONS
| Model: | CLS-1700-D2 | CLS-2300-D2 |
|---|---|---|
| Maximum laminating width: |
1630m | 2280 |
| Maximum laminating thickness: |
28mm | 28mm |
| Type: | Hot & Gold | Hot & Gold |
| Max Temp.: | 120°C/248°F | 120°C/248°F |
| Max Speed: | Up to 9m/min | Up to 9m/min |
| Pressure/Height adjust: | Air Pressure | Air Pressure |
| Heated method: | Infrared | Infrared |
| Roller: | Silicon | Silicon |
| Roller diameter: | 130mm | 130mm |
| Preheating time: | 10-15min | 10-15min |
| Power input: | 2700W / 4800W | |
| KW/H: | 0.8-1 | 0.8-1 |
| Volt: | 110V / 220V | 110V / 220V |
| Dimension: | 660mm x 2150mm x 1450mm | 660mm x 2150mm x 1450mm |
| Power Supply: | AC 380V/220V±10% , 50HZ/60HZ | AC 380V/220V±10% , 50HZ/60HZ |
| Emergency Stop Buttons: | 2 | 2 |
| Laser Eye: | Yes | Yes |
| Additional Safety: | Foot switch for hands free operation | Foot switch for hands free operation |
Please note that all specifications listed are subject to change at the discretion of the manufacturer without prior notification. For the latest specifications & updates please contact us on sales@clearsol.co.za.
